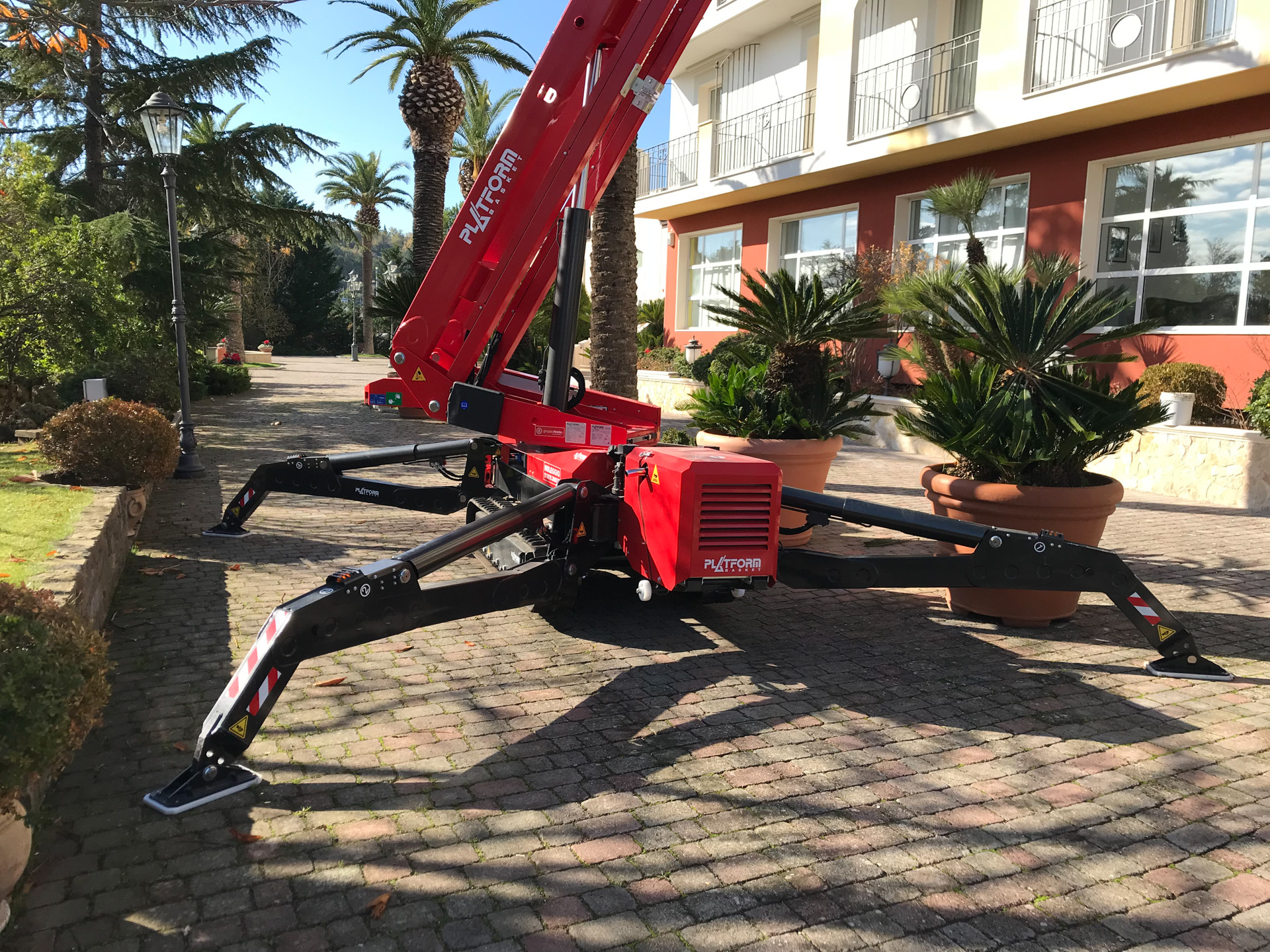

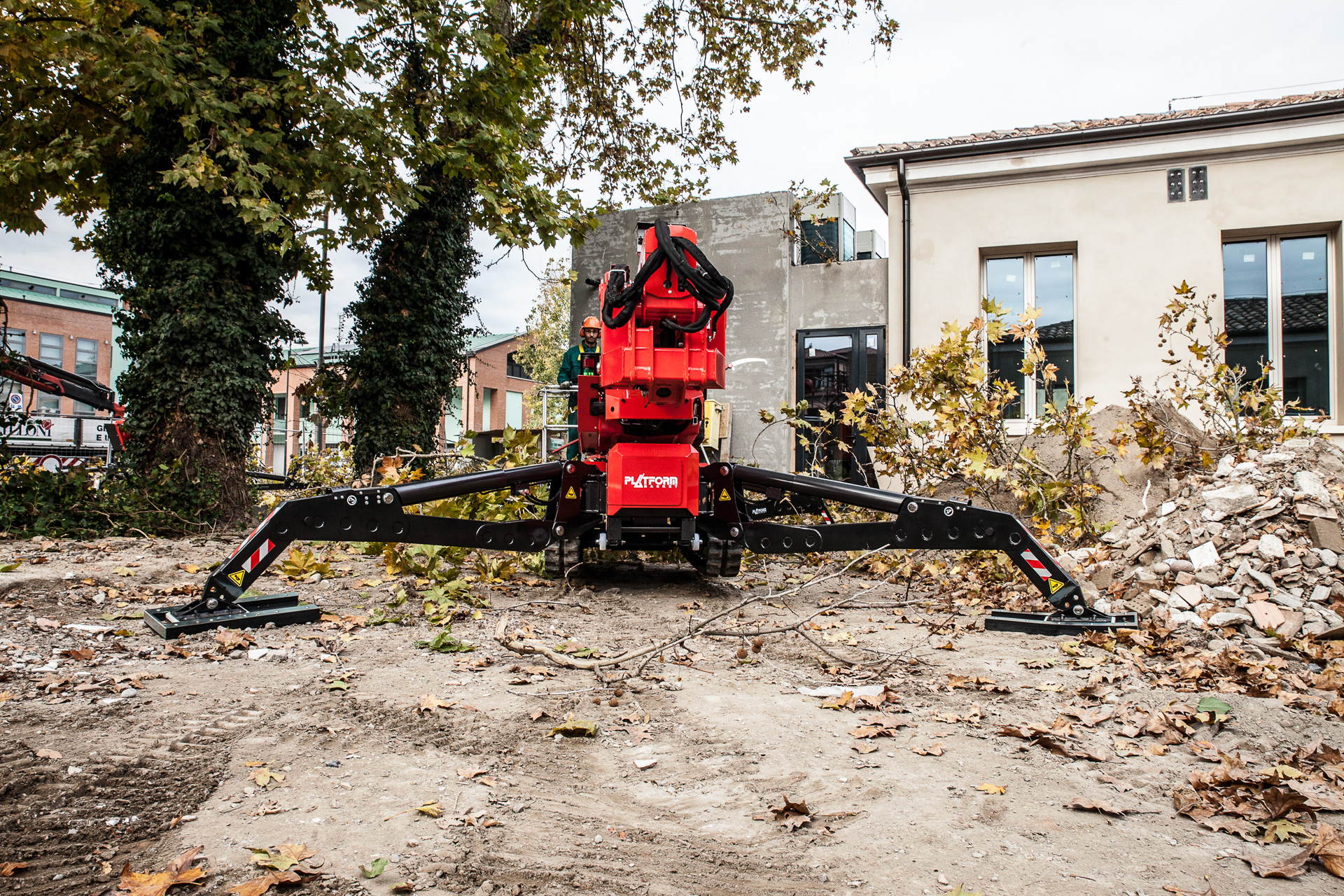

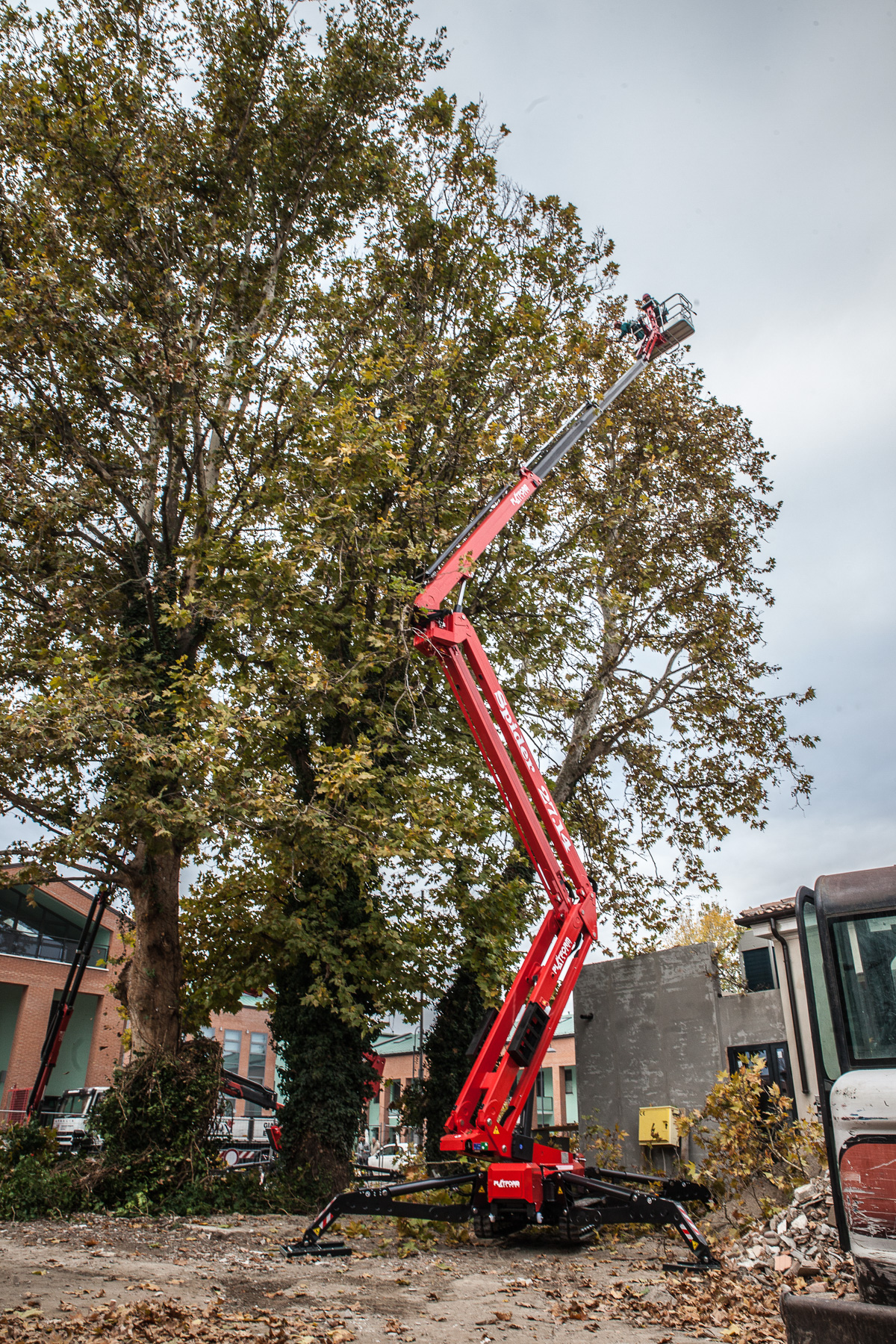

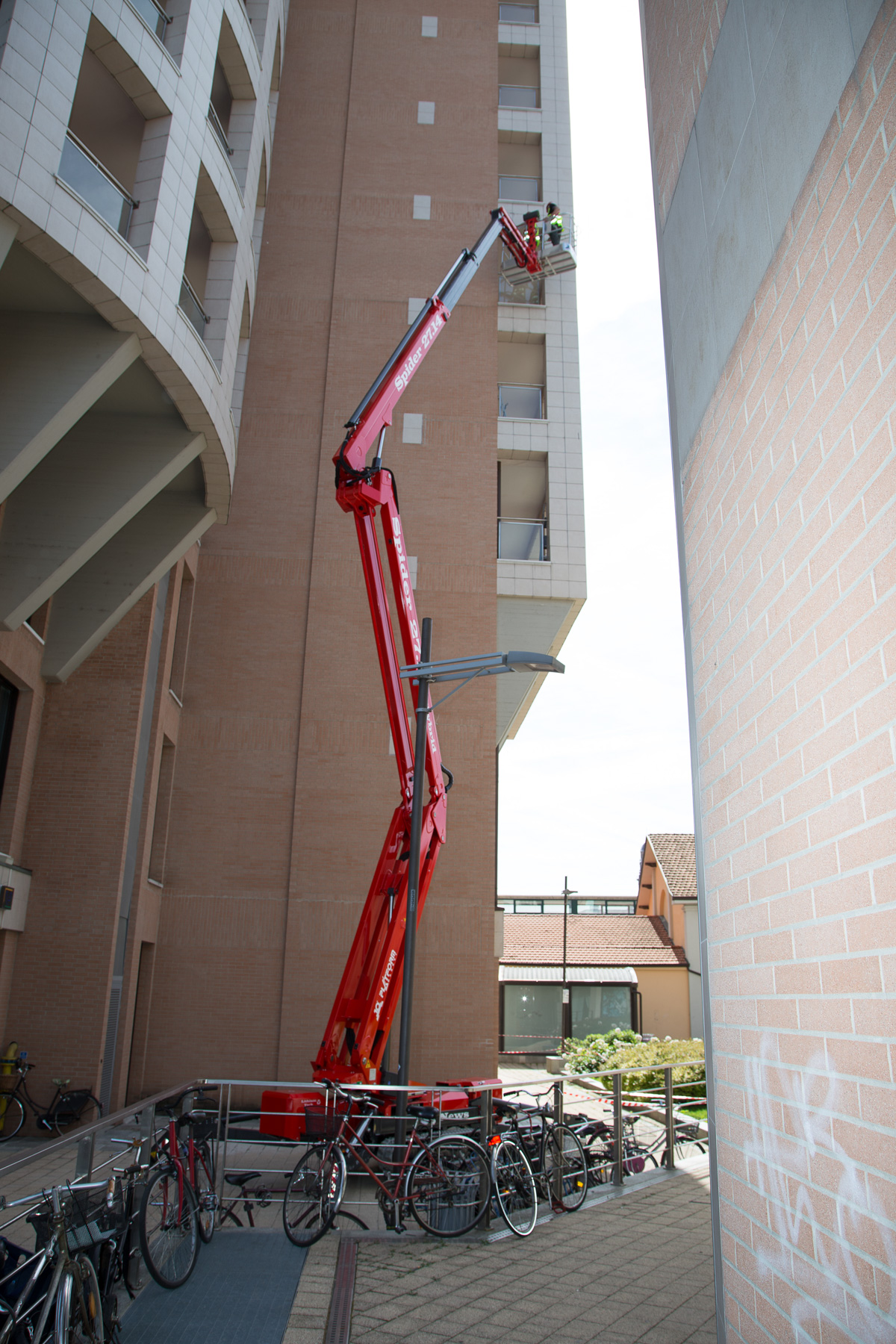

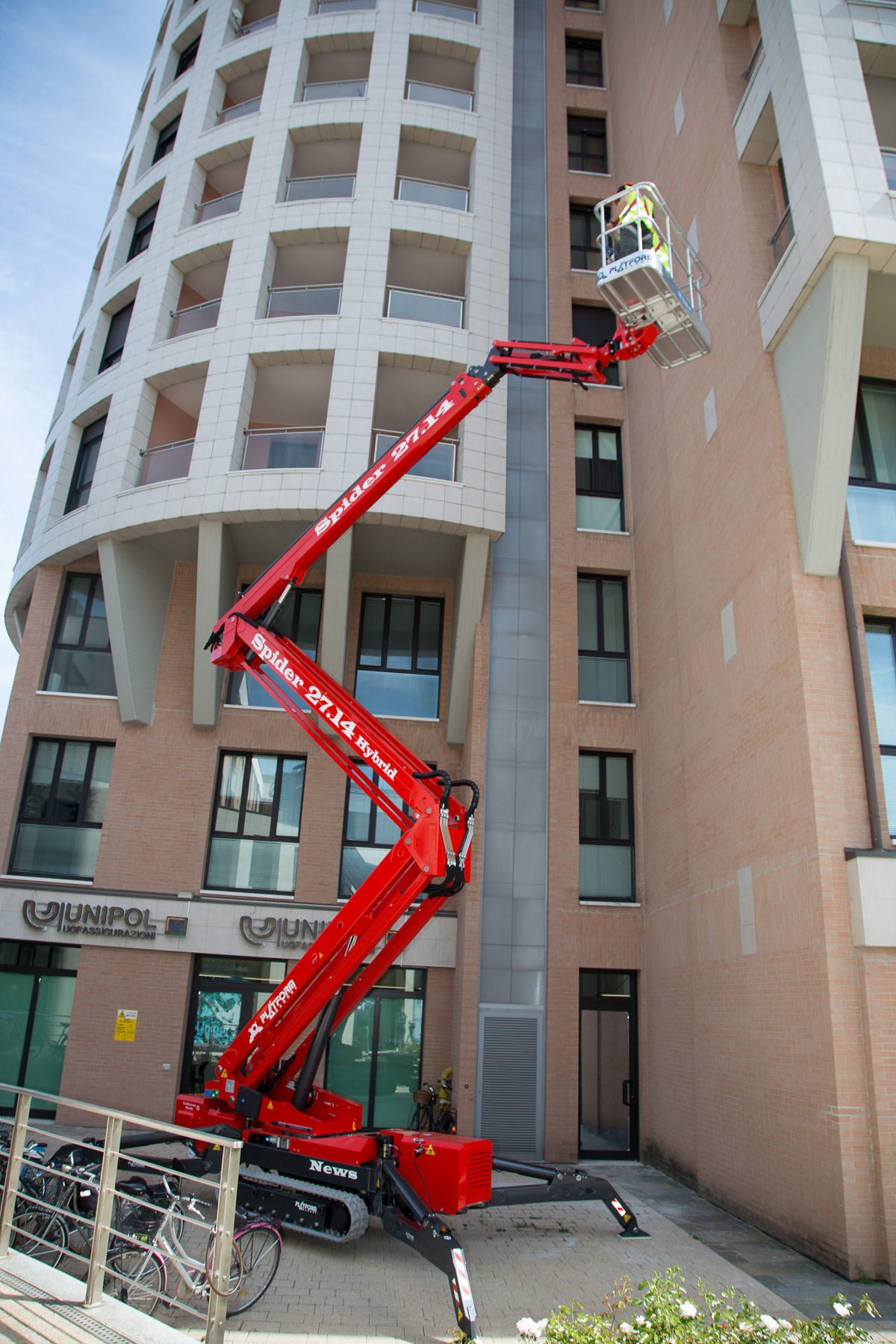

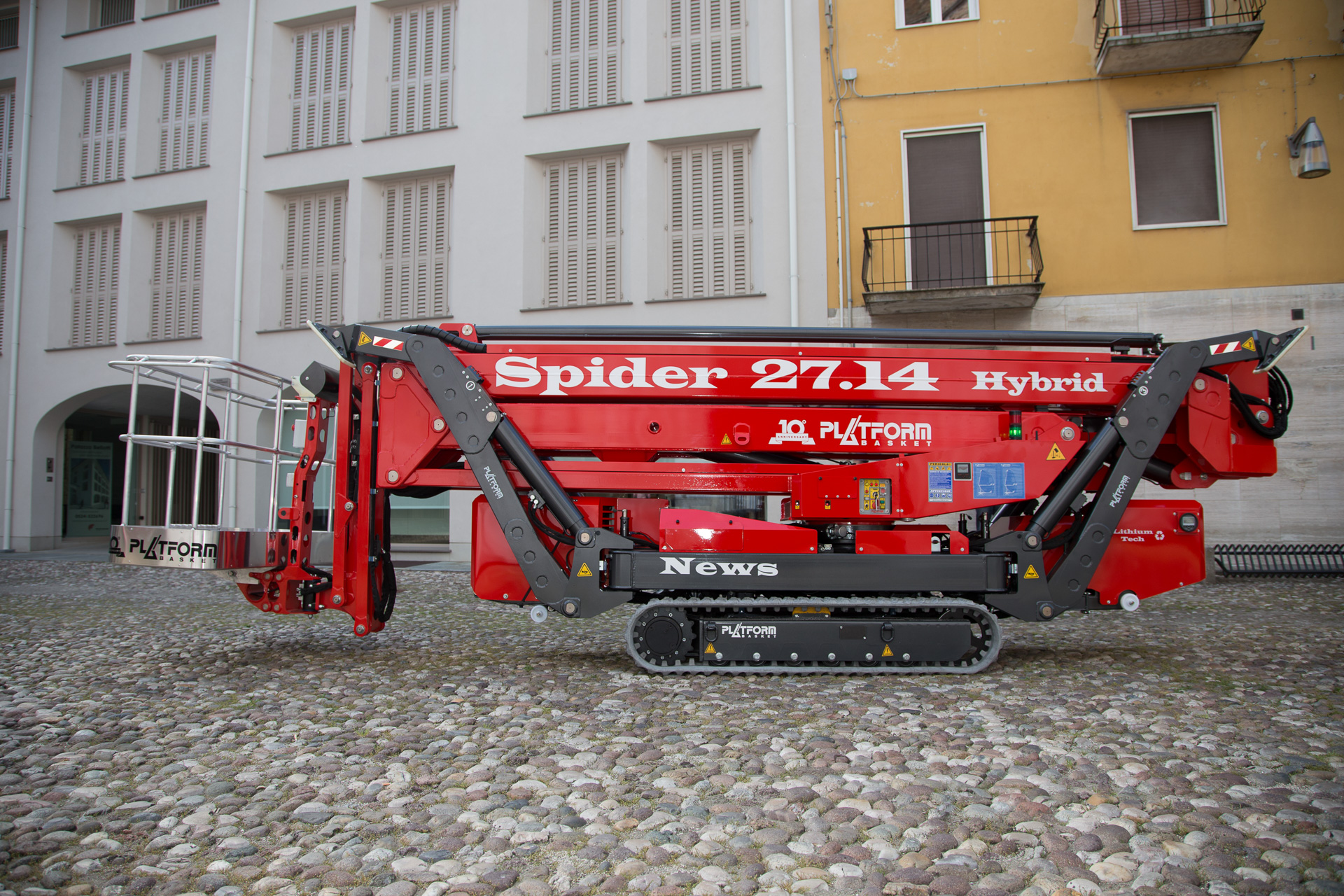

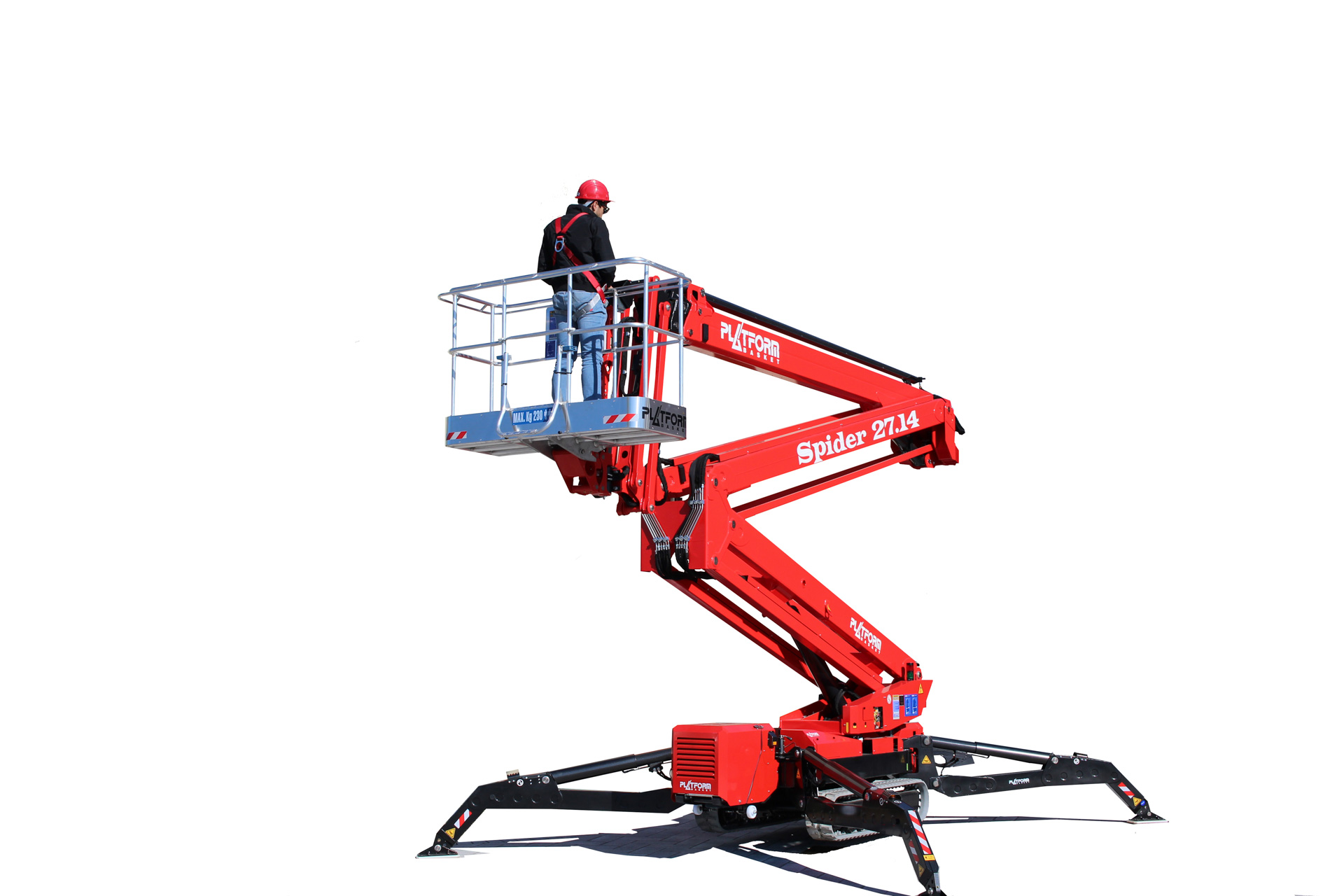

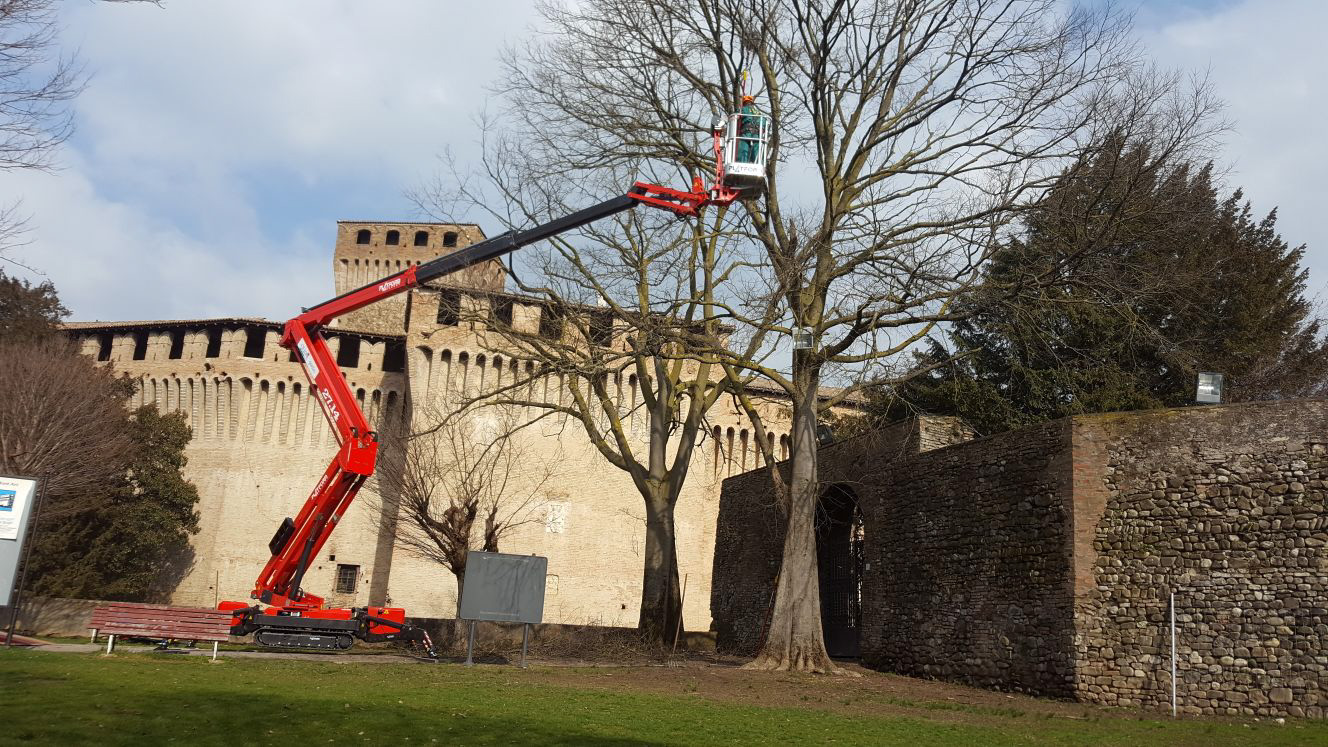

SPIDER 27.14 STD

Working height (mm)

27,010

Platform height (mm)

25,010

Outlay (mm)

15,110

Lifting capacity (kg)

230

Weight (kg)

5,000

Platform width (mm)

1,820

Platform length (mm)

720

Rotation chassis (degrees)

360

Weight (kg)

5,000

Construction height (mm)

1,990

Length (mm)

6,630

Width (mm)

890

Lifting capacity (kg)

230

Steering

Skidsteer

Electric equipment

230V to the platform
Radio remote control

Wheel / undercarriage

4 stabilizers - automatic leveling
Variable undercarriage

Wheel / undercarriage

Larger foot pads 75x30cm kit - with on-board storage frame
Extra charge for non-marking tracks in substitution of the std ones

Other equipment

Air outlet into the basket
Water outlet into the basket

Transmission

Hydrostatisk

Engine brand

Kubota

Engine type

D902

Engine (hk)

22

Electric motor (V)

230 ac / 50hz

Electric motor (Ah)

2

Platform height (mm)

25,010

Outlay (mm)

15,110

Outlay height (mm)

9,500

Rotation chassis (degrees)

360

Rotation basket (degrees)

172

Platform width (mm)

1,820

Platform length (mm)

720

Driving speed (km/h)

2,0

Gradeability (%)

31

Permissible leveling (degrees)

17

Working height (mm)

27,010

Engine

Kubota/D902

Power source / Fuel

Diesel

Brochure

Spider 27.14_.pdf
